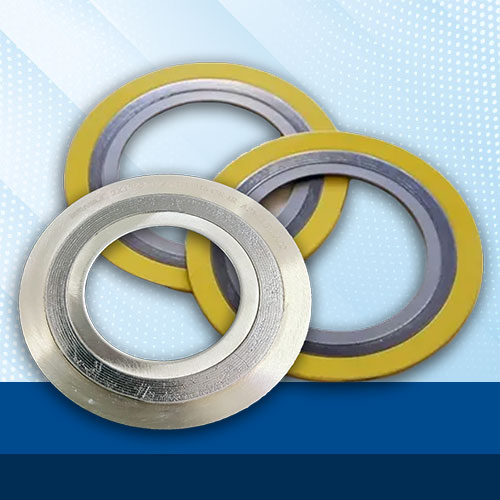

Spiral Wound Gaskets

Spiral Wound Gaskets provide the ideal sealing solution for flanged joints, heat exchangers, boiler handholes, manholes, and other critical high-temperature, high-pressure applications. With exceptional resistance to all known corrosive and toxic elements, these gaskets ensure secure and leak-proof seals even under the most demanding conditions.

Standards and Customization:

 • Manufactured as per ASME B16.20 to suit ASME B16.5 flanges.

• Available in A Series and B Series to suit ASME B16.47 flanges.

• Conformance to DIN 2632-2638, IS Standards, and more.

 • Filler and winding materials can be customized based on chemical compatibility requirements.

Flange Suitability:

• BS1560 and ANSI B16.5: 1/2" – 24", 150-2500 lbs.

 • BS10: Tables D-T.

• B4504: 10-250 Bar.
