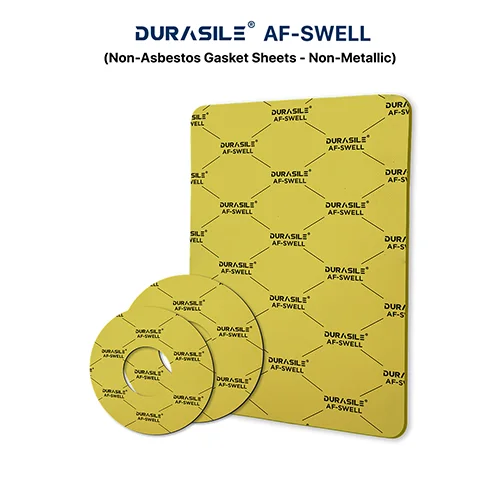

AF-SWELL (Non-Metallic)
DURASILE AF SWELL (Non-Metallic)
DURASILE AF-SWELL is a compressed non-asbestos (CNAF) gasket material specially designed with controlled swell properties for enhanced sealing performance in automotive and chemical applications. It provides excellent adaptability and reliable sealing in contact with engines, transmissions, hydraulic systems, and various oils. Additionally, it is well-suited for low-pressure joints such as housings, valve covers, and oil pans.
Composition :-
DURASILE AF-SWELL gasket sheet is manufactured from a blend of aramid and mineral fibres bonded with styrene-butadiene rubber (SBR). The sheets are produced through the hot calendar process under strict quality controls conforming to ISO-9001 standards.
Compliance : ASTM F 104

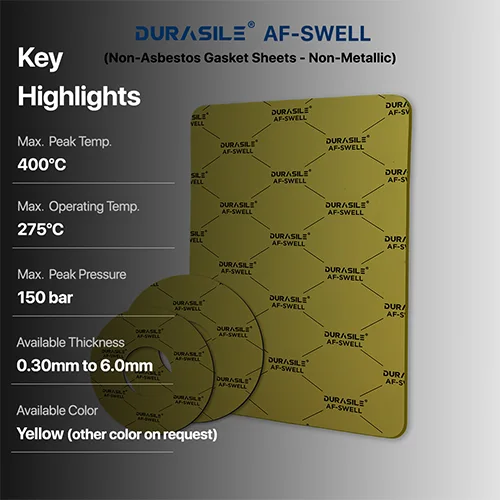

| Technical Details | |
|---|---|
| Maximum Peak Temperature °C | 400°C |
| Maximum Operating Temperature °C | 275°C |
| Maximum Peak Pressure (bar) | 150 bar |
| Available Thickness (in mm) | 0.30 – 6.00 (other thickness available on request) |
| Available Colors | Yellow (other colors available on request) |

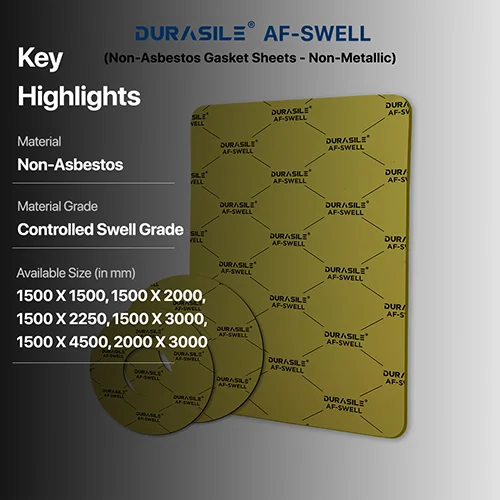

| Available Sheet Sizes (in mm) |
1000 X 1000, 1000 X 1500, 1500 X 1500, 1500 X 2000, 1500 X 2250, 1500 X 3000, 1500 X 4500, 2000 X 2000, 2000 X 3000 |
- Diluted alkalis
- Aliphatic solvents
- General chemicals
- Water
- Industrial oils
- Refrigerants
- Petroleum and Derivatives
- Air
- Automotive and Engine Building Industries
- Gas Supply
- General Supply
- Shipbuilding
